Product Specifications
Product Specifications

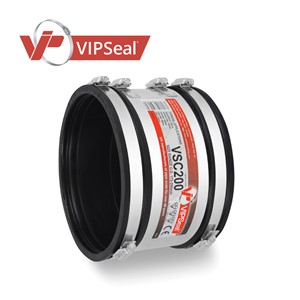

VIPSeal® Product Reference VSC
Size Range 65 - 620mm
Material EPDM Rubber
Steel 1.4301 (304) Stainless Steel / 1.4401 (316)
Tightening Torque 6Nm (50 - 290mm) / 10 Nm (310-385mm) /13Nm
(410-620mm)
Pressure Rating 2.5 bar / 36.25 psi
Jetting Resistance 120 bar
Constant Working Temperature Range -10° to 60°
Standards EN681-1, EN295-4, WIS 4-41-01, DIBt, MPA, VA,
WSSA AS/NZS 4237
