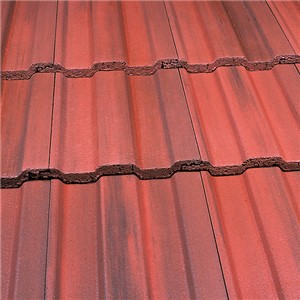

Marley Ludlow plus 80 Old English Dark Red

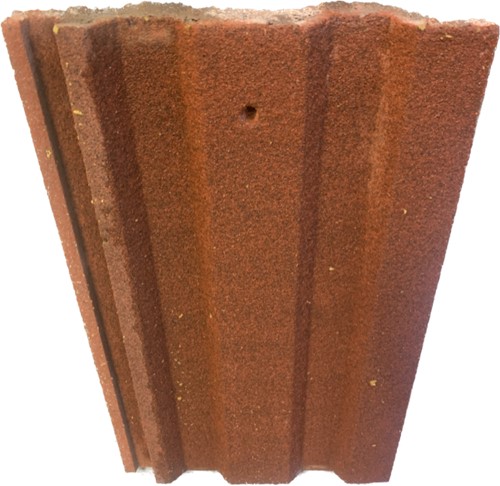

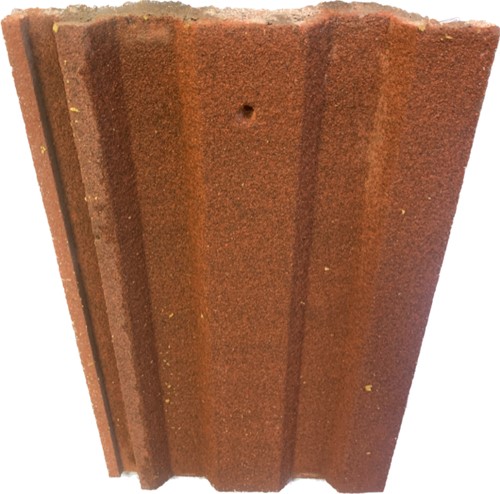

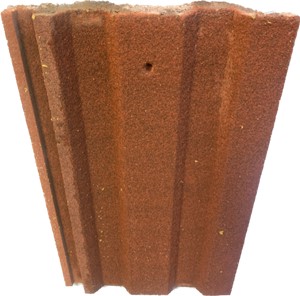

Ludlow Plus Interlocking tile - Size 387x229mm

SKU:

1013541

Price:

  • £1.50

Delivery
Click & Collect

Technical Data

  • Size of tile 387mm x 229mm
  • Minimum pitch* 25° Smooth (75mm headlap) 22.5° Smooth (100mm headlap)
  • 30° Granular (75mm headlap)
  • Maximum pitch 90°
  • Minimum headlap 75mm
  • Maximum gauge 312mm
  • Body thickness 25mm (nominal)
  • Overall depth 45mm
  • Cover width 204mm (nominal)
  • Hanging length 361mm (nominal)
  • Covering capacity (net) 15.7 tiles/m2
  • at 75mm headlap 17.1 tiles/m2
  • at 100mm headlap
  • Weight of tiling (approx.) 47kg/m2
  • (0.46 kN/m2) at 75mm headlap 51kg/m2
  • (0.50 kN/m2) at 100mm headlap
  • Battens required (net) 3.2 lin.m/m2
  • at 75mm headlap 3.5 lin.m/m2
  • at 100mm headlap
  • Batten size recommended 38mm x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534)
  • 50mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)
  • Tile nails 50mm x 3.35mm
