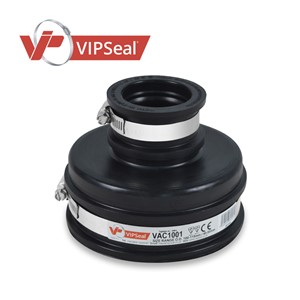

VAR Adaptor Couplings VIPSeal® VAR adaptor couplings incorporate an extra wide tension band at one end to allow a secure connection from clay pipe to structured, twin wall or ribbed plastic pipe. Adaptor coupling applications: Connect pipes with a significantly different outside diameter Connect lateral to unadopted sewers Connect pipes to prefabricated structures: manholes, inspection chambers, septic tanks Connect clay pipes to structured, twin wall, and ribbed plastic pipes

SKU:

1017469

Price:

£16.78

Quantity:

×Stock coming soon - try again later

Click & Collect

Product Specifcations

Product Specifications
VIPSeal® Product Reference VAC, VAR
Size Range 35-420mm
Material EPDM Rubber
Steel 1.4301 (304) Stainless Steel / 1.4401 (316)
Tightening Torque 6Nm (35 - 290mm) / 10 Nm (310-385mm) /13Nm
(390mm upwards)
Pressure Rating 0.6 bar / 8.7 psi
Jetting Resistance 120 bar
Constant Working Temperature Range -10° to 60°
Standards EN681-1, EN295-4, MPA, VA, WSSA AS/NZS 4237
